| Table Header | Table Header |
|---|---|
|
Accuracy |
Up to 0.2 in (4 mm) per API Chapter 3.1B |
|
Pressure Ratings |
150, 220, or 300 PSI (typical variants) |
|
Operating Temperature |
-30 °F to +160 °F (-34 °C to +71 °C) typical |
|
Measuring Range |
Standard 0–60 ft (18 m) |
|
Display |
Dial/counter, metric or imperial (decimals or fractions) |
|
Installation |
Tank roof or at‑grade ground‑reading kits; spherical/bullet kits available |
|
Magnetic Drive |
Isolates indicator from process pressure to prevent vapor escape and damage |
|
Digital Integration |
Compatible with 2920 Float & Tape Transmitter (level, temperature, protocols: Modbus, GPU/BPM, Mark/Space, L&J Tankway) |
|
Approvals |
|

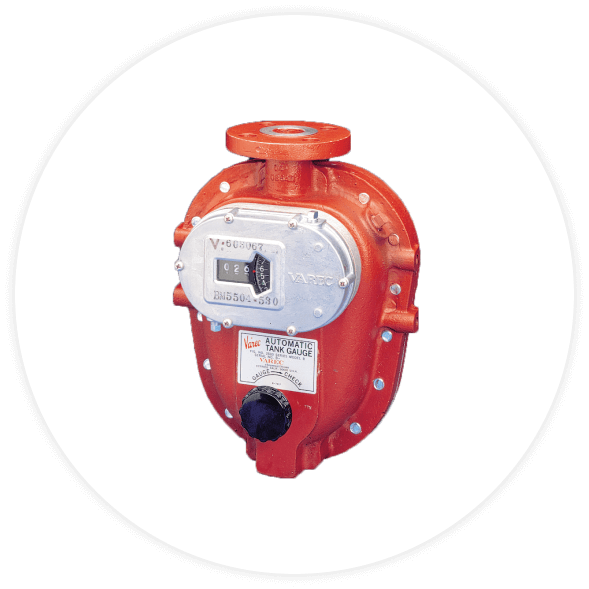

Need safe, reliable level measurement on pressurized storage? Contact Cognesense for 2520 ATG sizing, pressure‑rated kits, ground‑reading options, and digital integration with the 2920 FTT. We’ll deliver a turnkey plan with accessories and installation guidance. Quotes are usually provided within 3–5 business days.
We have tried to answer the most common questions we are asked here.
Up to 0.2 in (4 mm) per API Chapter 3.1B when installed and calibrated per guidelines.
Typical variants are 150, 220, or 300 PSI; select based on tank design and site standards.
It isolates the indicating mechanism from process pressure, reducing risks of vapor escape and mechanical damage.
Yes. Use ground‑reading kits to locate the indicator at grade while keeping the float/tape at the tank roof.
