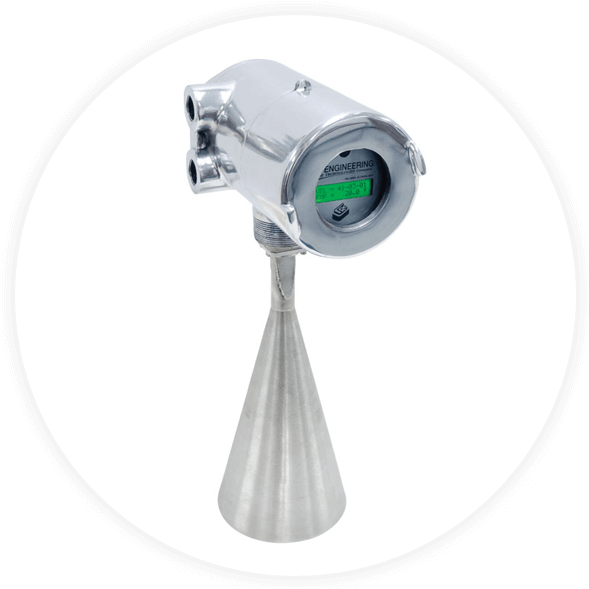

Designed for Terminal Operations Managers, Process Engineers, Asset Integrity Managers, and EPC Project Engineers who demand precision, safety, and efficiency, the MCG 1600SFI Smart Flash Infrared Radar Gauge is the proven solution for accurate and reliable tank gauging. This gauge delivers 0.5mm custody-grade accuracy, broad application flexibility (from–100 °C to +250 °C), and full hazardous-area certifications. Unlike conventional radar gauges, the MCG 1600SFI features custom antenna configurations for any tank condition, infrared handheld calibration for ground-level safety, and a user-friendly setup wizard, simplifying new projects and retrofits while minimizing costly engineering time.
0.5 mm accuracy with 0.1 mm resolution ensures precise custody-transfer billing, protecting revenue, and early detection of leaks or shrinkage.
Advanced FMCW technology uses continuous frequency sweeps to deliver stable, high-resolution measurement, minimizing false echoes from vapor, foam, or turbulence.
The Smart Flash IR remote allows for configuration and diagnostics from ground level, eliminating the need to open explosion-proof enclosures or climb tanks, significantly enhancing safety.
The wide temperature range (–100 °C to +250 °C) and pressure rating (up to 300 PSIG) cover applications from cryogenic LNG to hot asphalt.
Offers multiple antenna options (Parabolic, Cone, Rod, Stilling-well) tailored to specific tank internal conditions and product characteristics.
Certified to UL, ATEX, CE, IECEx, and ABS standards, enabling safe and compliant deployment in hazardous environments worldwide.
| Table Header | Table Header |
|---|---|
|
Custody-Grade Accuracy |
±0.5 mm accuracy with 0.1 mm resolution |
|
Advanced FMCW Radar |
Dual processors for echo cancellation and self-calibration |
|
Long Range Measurement |
0–75 ft standard, up to 180 ft optional |
|
Safe, Easy Setup |
Smart Flash IR remote (no tank entry) and optional ground-level display |
|
Temperature Compensation
|
Integrates with MCG 300 RTD or 350/351 probes |
|
Flexible Outputs |

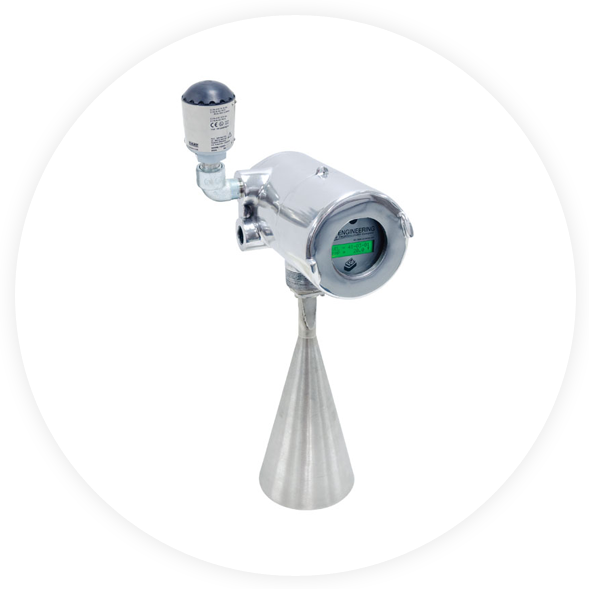

4–20 mA, Tankway, Modbus, HART, WirelessHART |
|
Wide Temperature & Pressure |
Electronics –40 °C to +65 °C; Product –100 °C to +250 °C; 150 PSIG standard, 300 PSIG optional |
|
Global Certifications |
UL/C-UL, CE/ATEX, IECEx, ABS |
|
Durable Construction
|
Aluminum (~8 lb) or stainless steel |
|
Versatile Mounting |
2″ NPT or ANSI flange (150#/300#) |
Have a look at the flyer to get all the tech specs and product features.
Brochure
Read the manual for detailed information and instructions.
Manual
Check out a sample cert from our calibration lab.
Certificate
If you have a question that we have not covered then just get in touch and we’ll be happy to help.
We have tried to answer the most common questions we are asked here.
The FMCW (Frequency-Modulated Continuous-Wave) radar is superior to pulse radar because it continuously processes frequency shifts. This results in a stronger, more stable signal that can penetrate light foam and ignore turbulence on the liquid surface, ensuring a consistent and reliable reading of the actual product level.
Yes. The Smart Flash IR remote calibration feature allows all setup, configuration, and diagnostics to be performed safely from the ground. This non-intrusive method eliminates the need for ladders or scaffolding and maintains the integrity of the explosion-proof housing.
Yes. The gauge offers flexible outputs including Modbus, HART, and L&J Tankway protocols. This multi-protocol capability allows for a seamless, cost-effective drop-in retrofit into older control systems while also supporting integration into modern SCADA/DCS platforms.
