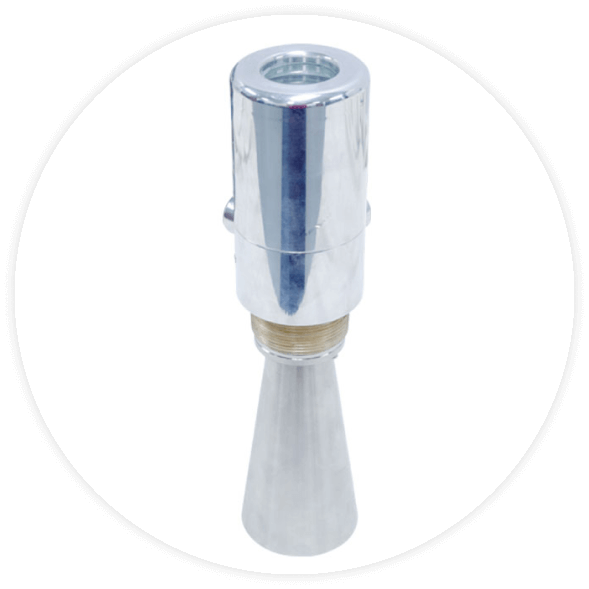

Terminal managers, process automation engineers, compliance teams, and EPC project specifiers need reliable measurement across diverse tanks and conditions. For them, the evo 2600 radar level gauge is designed to deliver precision, accuracy, safety, and simplicity across various tank conditions.
Unlike conventional pulse radar instruments, the EVO 2600 uses frequency-modulated continuous wave (FMCW) technology to achieve ±3 mm accuracy, stable measurement in vapor, foam, or turbulence, and quick, safe ground level commissioning via its e.CAL setup wizard and IR handheld calibration tools.
It features infrared handheld calibration, multi-protocol connectivity, and a robust stainless-steel design, ensuring long-term reliability in the harshest environments — from cryogenic LNG tanks to heated asphalt service.
Whether for new projects or retrofit upgrades, the EVO 2600 provides the accuracy, compliance, and usability modern facilities demand — all while keeping technicians safely on the ground.
Provides stable and continuous high-resolution readings with fewer false echoes in challenging conditions like foam, vapor, or turbulence.
An intuitive, step-by-step guide that allows for fast and easy commissioning in minutes, significantly reducing startup time and costs.
With ±3 mm accuracy, the evo 2600 minimizes inventory uncertainty, leading to better loss control and reconciliation.
Choose from conical horns, parabolic, or hinged hatch designs to match your specific application, ensuring reliable performance regardless of the product's characteristics.
The infrared handheld calibrator allows full setup and maintenance without the need to climb tanks or open explosion-proof housings, significantly improving safety.
Operates reliably in extreme temperatures, with a process rating from -100 °C to +160 °C, suitable for both cryogenic and heated fluids.
Approved by FM, ATEX, IECEx, and ABS, ensuring safe and compliant use in hazardous environments worldwide.
Lightweight, corrosion-resistant housing built for long-term field performance.
The evo 2600 is an ideal solution for a variety of industries:
| Table Header | Table Header |
|---|---|
|
Accuracy |
±3 mm |
|
Technology |
26 GHz FMCW radar |
|
Range |
0–65 ft (standard) |
|
Temperature Limits |
Electronics: –40 °C to +66 °C;
Process: –100 °C to +160 °C |
|
Pressure Rating |
150 PSIG |
|
Outputs & Protocols |

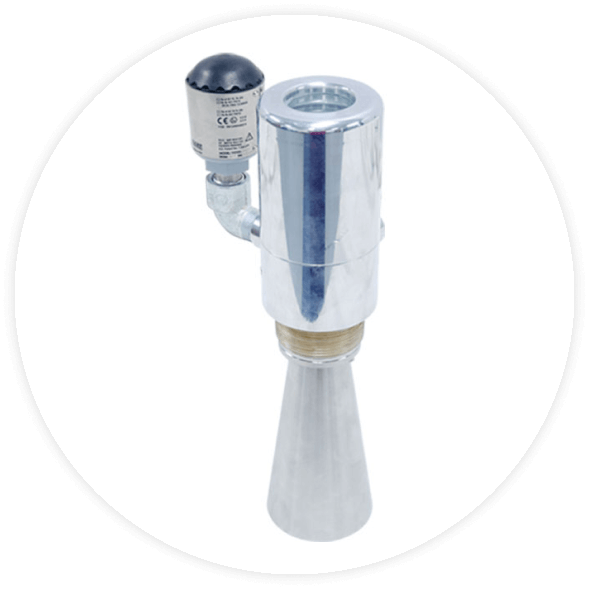

L&J Tankway, Modbus, HART, WirelessHART, Profibus, Fieldbus |
|
Certifications |
FM, ATEX, IECEx, ABS |
|
Construction
|
Aluminum housing |
|
Mounting |
2″ NPT or ANSI flange |
Have a look at the flyer to get all the tech specs and product features.
Brochure
Read the manual for detailed information and instructions.
Manual
Check out a sample cert from our calibration lab.
Certificate
If you have a question that we have not covered then just get in touch and we’ll be happy to help.
We have tried to answer the most common questions we are asked here.
FMCW (Frequency Modulated Continuous Wave) radar continuously sends a signal that sweeps through a range of frequencies. This provides a more stable and higher-resolution measurement than older pulse radar technology, resulting in fewer false echoes from foam, turbulence, or other challenging conditions. This translates to more reliable data and less manual intervention.
Yes, the evo 2600 supports a variety of communication protocols, including L&J Tankway, Modbus, and HART, which allows it to be a drop-in replacement for many legacy systems. This simplifies upgrades and reduces downtime.
