EVO 2600 SW

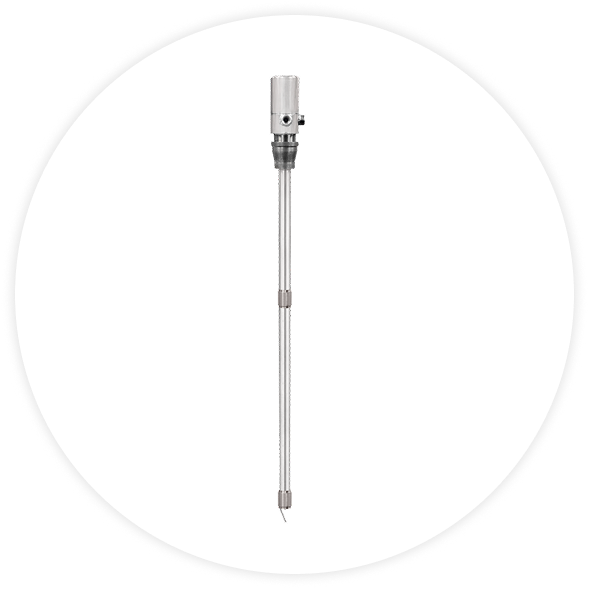

The evo2600 SW Stilling Well Adapter is a purpose-built accessory that enables accurate installation of the evo2600 Radar Level Gauge inside stilling wells or guide tubes. It is designed for terminal operators, project engineers, maintenance planners, and EPC specifiers who need reliable radar measurement in tanks affected by turbulence, foam, vapor, or internal movement.
The adapter allows the evo2600 to be installed into existing stilling wells or float-and-tape couplings without adding new nozzles or taking tanks out of service. Unlike improvised field modifications, the evo2600 SW is engineered to maintain proper radar signal alignment, minimize echo loss, and preserve tank integrity. Its sectional design supports tank-specific lengths and simplifies installation in both retrofit and new applications.
By ensuring consistent radar performance in challenging conditions, the evo2600 SW Adapter helps operators achieve stable, accurate inventory measurement while reducing installation cost, downtime, and long-term maintenance risk.

Features

Density & Interface Measurement

Engineered Radar Coupling

Optimizes FMCW radar signal transmission inside stilling wells to reduce false echoes and signal distortion.

Retrofit-Friendly Design

Fits into existing couplings as small as 1.5″, eliminating the need for new tank penetrations or welding.

Tank-Side Automation

Tank-Specific Lengths

Supplied in sections to match tank height requirements, ensuring proper installation depth and alignment.

Durability

In-Service Installation

Can be installed while tanks remain in operation, minimizing downtime and operational disruption.

Robust Industrial Construction

Built from heavy-duty materials suitable for chemical, petrochemical, and wastewater environments.

Secure Sealing Interface

Gasketed design maintains tank pressure boundaries and supports safe, compliant operation.

Details

Applications

  • Floating Roof Tanks: Provides stable measurement inside stilling wells where roof movement and surface turbulence affect free-space radar.
  • Agitated or Mixed Tanks: Improves measurement reliability in tanks with mixers or internal circulation.
  • Foaming or Vapor-Rich Products: Reduces echo scatter caused by foam or vapor buildup.
  • Terminal Retrofits: Enables replacement of mechanical float & tape gauges with radar technology using existing couplings.
  • Chemical & Petrochemical Storage: Supports accurate level measurement in corrosive or process-intensive services.
  • Water & Wastewater Tanks: Maintains consistent radar performance in turbulent or debris-prone basins.

Key Benefits

  • Accuracy Preserved: Maintains the evo2600’s specified ±3 mm accuracy when installed inside stilling wells.
  • Lower Installation Cost: Avoids new nozzles and hot work, reducing project cost and installation time.
  • Improved Measurement Stability: Minimizes signal fluctuations caused by turbulence, foam, or internal tank movement.
  • Enhanced Safety: Preserves tank pressure integrity and reduces potential leak paths.
  • Installation Flexibility: Available in multiple diameters and materials to match site requirements.
  • Long-Term Reliability: Rugged construction supports extended service life in demanding environments.

Technical Specifications & Key Features

Table Header Table Header
Compatibility
evo2600 Radar Level Gauge
Mounting
Fits existing couplings as small as 1.5″
Stilling Well Diameters
Tank-specific lengths available (typically 10′–60′)
Construction Materials
316 Stainless Steel standard; other materials available
Pipe Diameter
1.38″ O.D
Installation
Sectional design; installable while tank is in service
Technology Supported
FMCW radar (26 GHz via evo2600)

Documents and Downloads

Product Flyer

Have a look at the flyer to get all the tech specs and product features. Brochure

User Manual

Read the manual for detailed information and instructions. Manual

Calibrations

Check out a sample cert from our calibration lab. Certificate

Contact Support

If you have a question that we have not covered then just get in touch and we’ll be happy to help.

Contact Us

FAQs

We have tried to answer the most common questions we are asked here.

In tanks with turbulence, foam, or floating roofs, stilling wells stabilize the liquid surface. The evo2600 SW Adapter ensures the radar signal is properly coupled inside the well, preserving accuracy and reliability.
Yes. The evo2600 SW is specifically designed to fit into existing float & tape couplings, allowing radar upgrades without new nozzles or tank modifications.
No. The evo2600 SW can be installed while the tank remains in service, reducing downtime and operational impact.
316 stainless steel is standard. Additional materials may be available depending on application requirements.
No. The evo2600 SW is engineered specifically for use with the evo2600 Radar Level Gauge to ensure proper alignment and performance.

Yes. The adapter is specifically designed to fit common stilling well diameters (4″ to 24″) and mounting flanges, simplifying the retrofit process. By adapting the evo2600 to your existing infrastructure, you can gain modern radar accuracy without the high cost of full tank modifications.

No. The adapter is engineered to optimize the radar signal path within the stilling well. This careful design ensures that the evo2600’s intrinsic 3mm accuracy is preserved, even in challenging internal tank conditions.
